How is the fiber optic cable connected to the ODF patch panel

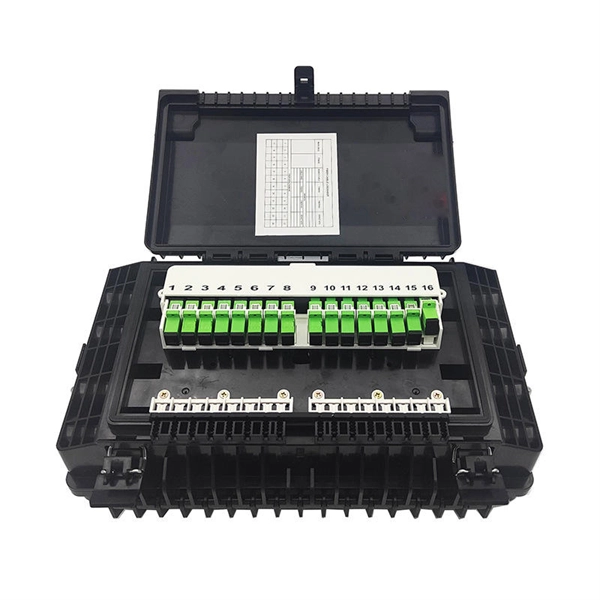

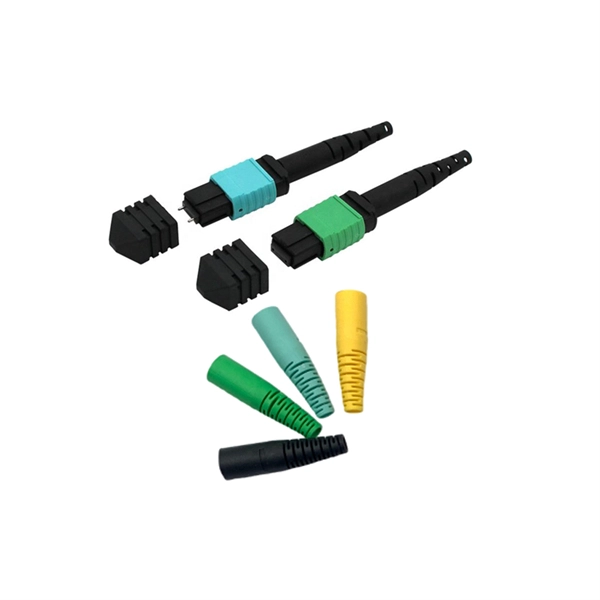

Properly tying fiber optic cables to an ODF patch panel involves careful routing, securing with Velcro or hook-and-loop ties, maintaining bend radius, and labeling for easy identification.Step-by-Step Guide1. Prepare the Fiber Cables and Tools Before connecting fibers, gather necessary tools: fiber optic patch cords, connectors, cleaver, splicer, cleaning kit, and safety goggles. Strip the outer jacket carefully to expose individual fibers without damaging them, and clean the fiber ends to prevent signal loss . 2. Route the Cables into the ODF Insert cables through side or bottom openings of the ODF to minimize stress and water intrusion. Use grommets to prevent chafing. Position home run fibers at the bottom if the plate is horizontal, or on the left side if vertical . Ensure cables are labeled at both ends for easy identification . 3. Maintain Proper Bend Radius Fiber optic cables are sensitive to bending. Maintain a minimum bend radius of 5 inches for cable loops and 1.5–2 inches for individual fiber strands to avoid attenuation or damage . Avoid running fibers through brackets that could shear or pinch them. 4. Secure and Tie the Cables Use Velcro or hook-and-loop fasteners to tie the cables. Avoid plastic zip ties that can deform the cable jacket and degrade signal strength. Arrange excess cable neatly in loops behind the strands, keeping the setup organized and serviceable . 5. Connect to the Patch Panel Splice or terminate fibers as needed, then insert connectors into the appropriate ports on the patch panel. Ensure that patch cords are routed according to the port configuration and do not cross over multiple spools unnecessarily . 6. Labeling and Documentation Label each fiber cable with its source and destination. Attach a panel label inside the patch panel door and print designations on the outside. Machine-printed labels are preferred over handwritten ones for clarity and durability . 7. Final Checks Verify that all fibers are properly secured, loops are neat, and bend radii are maintained. Test the connections with a fiber optic tester to ensure signal integrity before closing the ODF panel . By following these steps, you ensure a safe, organized, and efficient fiber optic installation that minimizes signal loss and facilitates future maintenance.
