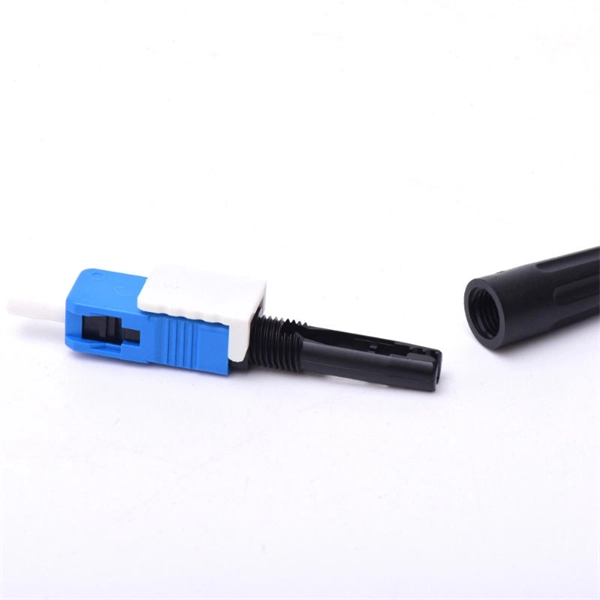

Fiber Optic Fast Connector SC Head

SC Fast Connectors are pre-assembled, field-installable connectors designed for quick, reliable fiber optic terminations with minimal signal loss.OverviewSC Fast Connectors are pre-assembled, field-installable connectors that allow for rapid termination of optical fibers without the need for specialized tools, epoxy, or polishing . They utilize a mechanical splice or fast-connect mechanism to ensure precise fiber alignment and a secure connection, making them ideal for FTTH, data centers, and high-speed network applications .Design and FeaturesConnector Type: SC (Standard Connector) with a 2.5 mm ferrule and push-pull coupling mechanism .Fiber Compatibility: Supports single-mode (G652D, G657A1/A2) and multi-mode fibers, compatible with 250 µm and 900 µm fibers, as well as 0.9 mm, 2 mm, and 3 mm cordage .Polishing Types: Available in UPC (Ultra Physical Contact) and APC (Angled Physical Contact), with APC providing higher return loss for sensitive links .Ferrule Material: High-precision zirconia ceramic ferrules with concentricity within 0.5 µm to maintain stable fiber alignment .Installation: Tool-less, fast termination typically completed in 30 seconds, with a factory pre-polished fiber stub and index-matching gel to minimize insertion loss .Housing: Square plastic housing with push-pull design, flame-retardant (UL94 V-0) for indoor use .Performance: Typical insertion loss ≤ 0.3 dB and return loss ≥ 50 dB (APC), ensuring high-quality signal transmission .ApplicationsSC Fast Connectors are widely used in:FTTH (Fiber to the Home) deployments for quick drop cable terminations.Data centers and LAN networks where high-density, reliable connections are required.Telecom networks and ODN systems for rapid field installation and maintenance .AdvantagesTime-saving: Eliminates epoxy, polishing, and curing steps.High reliability: Stable connections even after repeated use.Compact and high-density: Suitable for space-constrained environments.Plug-and-play: Easy to install by technicians without specialized training . SC Fast Connectors provide a cost-effective, efficient, and reliable solution for modern fiber optic networks, combining fast installation with high optical performance.
