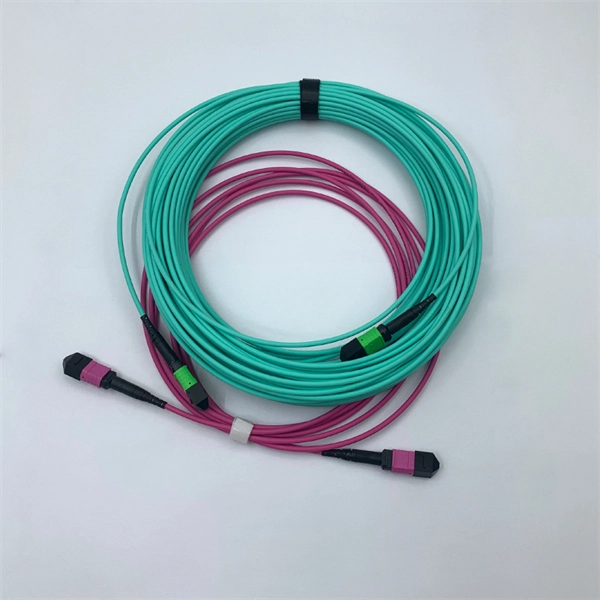

Making and Cutting Fiber Optic Patch Cords

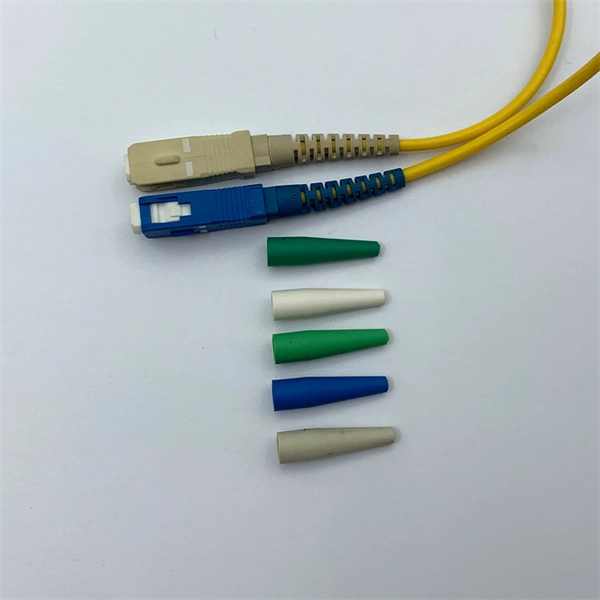

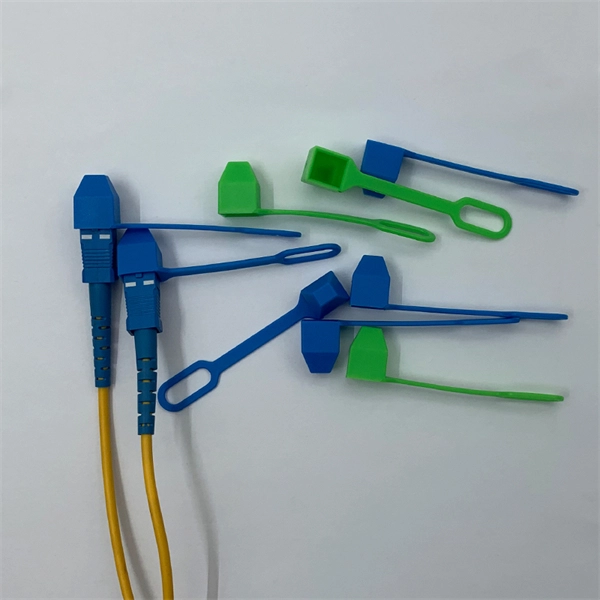

Fiber optic patch cords are made by precisely cutting, preparing, assembling, polishing, and testing optical fibers to ensure high-quality signal transmission.Tools and Materials NeededTo produce fiber optic patch cords, you will need:Fiber optic cable of the required type and lengthCable cutter and fiber cleaver for precise cuttingFiber optic stripper to remove the outer jacket and bufferEpoxy or adhesive for connector ferrulesCrimping machine for connector assemblyCuring oven (UV or thermal) to harden epoxyPolishing films and pucks for end-face finishingTesting equipment such as IL & RL testers, end-face microscopes, and visual fault locators Step 1: Cutting and Preparing the FiberMeasure and cut the fiber cable to the desired length, adding a small reserved length to account for connector assembly .Strip the cable using a fiber optic stripper to expose the buffer tube and aramid yarn (Kevlar).Clean the fiber with isopropyl alcohol and lint-free wipes to remove any residue .Roll and bind longer cables into manageable loops to prevent damage during handling .Step 2: Connector AssemblySlide the boot and crimp sleeve onto the cable.Inject epoxy or adhesive into the connector ferrule using a syringe.Insert the stripped fiber into the ferrule until it slightly protrudes from the tip.Cure the epoxy in a UV or thermal oven according to the adhesive specifications .Step 3: Cleaving and PolishingCleaving: Use a fiber cleaver to trim the protruding fiber as close as possible to the ferrule tip.Polishing: Polish the connector end-face using polishing films and a puck to minimize insertion loss and return loss. Polishing machines can be four-corner pressurized for high precision or center-pressurized for lower-volume production .Step 4: TestingInspect the fiber end-face with a microscope (200X–400X) to check for scratches, chips, or blemishes.Test insertion loss (IL) and return loss (RL) using appropriate testers.Use a visual fault locator (VFL) to detect breaks, poor connections, or bends in the fiber .Step 5: PackagingAfter testing, label and package the patch cords according to order specifications, ensuring protection during transport and storage .Best PracticesMaintain a clean and dust-free environment to prevent contamination.Handle fibers carefully to avoid micro-bends or cracks.Follow precise epoxy mixing and curing procedures to prevent micro-bubbles that can degrade performance .Use the correct polishing films and pads for the fiber type and connector to achieve optimal optical performance. By following these steps and using the proper tools, you can produce high-quality fiber optic patch cords suitable for telecommunications and data transmission applications.
