How to connect a connector to an optical fiber cable

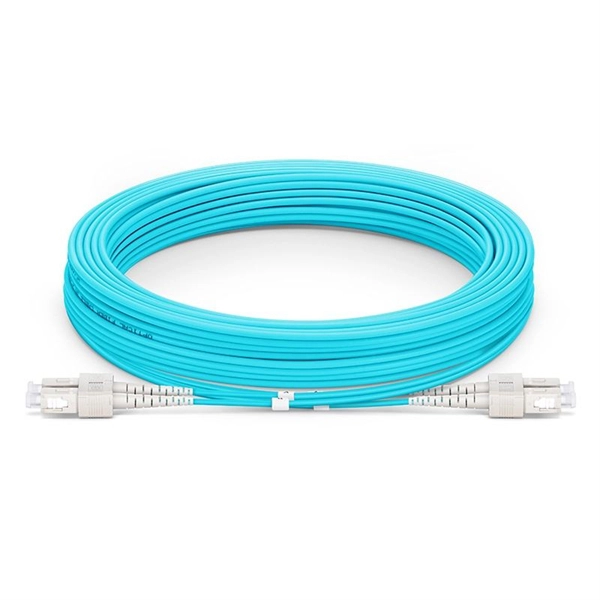

Connecting a fiber optic cable to a connector requires careful preparation, precise alignment, and proper testing to ensure a low-loss, reliable connection.Tools and Materials NeededFiber stripping tool to remove the outer jacket and buffer layers of the fiber .Fiber cleaver for making a precise, flat cut at the fiber end .Cleaning supplies such as alcohol wipes, fiber cleaning rods, and specialized cleaning solutions .Connector kit (SC, LC, ST, FC, or MTP/MPO) appropriate for your fiber type .Crimping pliers or adhesive (UV glue or epoxy) depending on connector type .Optical power meter or visual fault locator (VFL) for testing .Safety equipment: gloves and safety glasses to protect against glass shards .Step-by-Step Process1. PreparationInspect the fiber for damage, kinks, or bends .Ensure a clean, dust-free workspace and wear ESD gloves to prevent static damage .Remove the connector boot and any ferrule components from the connector kit .2. Stripping and CleaningUse the fiber stripping tool to carefully remove the outer jacket and buffer, exposing the bare fiber (typically 125 µm) .Clean the exposed fiber with alcohol wipes or fiber cleaning rods to remove dust, oil, or residue .3. Cleaving the FiberUse a fiber cleaver to make a precise, flat cut at the fiber end. A clean cut is critical for optimal light transmission .4. Inserting the Fiber into the ConnectorFor pre-polished connectors, insert the cleaved fiber into the connector ferrule, ensuring proper alignment .For field-installable connectors, apply adhesive (UV glue or epoxy) if required, and insert the fiber into the ferrule .Use a fixture or crimping tool to stabilize the fiber and secure the connector .Reattach the connector boot for strain relief .5. Polishing and FinishingSome connectors require polishing of the fiber end to ensure smooth contact surfaces and minimal signal loss .Clean the end face thoroughly and place a dust cap to protect it until installation .6. Testing the ConnectionUse an optical power meter or visual fault locator to verify proper alignment and minimal signal loss .Ensure the connection meets industry standards, such as TIA/EIA-568B.3, with insertion loss typically below 0.5 dB .Notes on Connector TypesLC connectors use a latch mechanism, FC connectors use a threaded screw, SC connectors use push-pull with latch, and ST connectors use a bayonet twist-lock .Single-mode fibers are used for long-distance communication, while multi-mode fibers are suitable for shorter distances with higher data rates . By following these steps carefully, you can achieve a reliable, low-loss fiber optic connection suitable for high-speed data transmission .
